Vacuum Freeze Dryer Machine Laboratory Pharmaceutical Plant Sublimator Powder Freeze Dryer
Freeze dryer is widely applied in pharmaceutical industry, biotechnology industry , biological science industry, materials science industry, chemical industry, food and agriculture industry etc. it is used to produce vaccines, drugs and permanently store biological tissues/organs.
LTDG-CX Series freeze dryer is specialized designed for small batch test in laboratory.The Bench Top and Console freeze dryers are with advanced design and occupies smaller area.
Technical Parameters
| Model | LTDG-10S | LTDG-10T | LTDG-10P | LTDG-10PT |
| Type | Standard
chamber | Stoppering
chamber | Standard
chamber with
8 port manifold | Standard
stoppering |
| | | | | chamber with
8 port manifold |
| Final condenser temp (℃) | -55 |
| Vacuum Degree (Pa) | <10 |
| Condenser volume (L) | 9 |
| Freeze drying area (m2) | 0.12 | 0.09 | 0.12 | 0.09 |
| Ice condenser capacity (Kg/24h) | 3 |
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/shelf (ml) | 300 | 300 | 300 | 300 |
| Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time (h) | 24 | 24 | 24 | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y | Y | Y | Y |
| Drying Chamber(standard) | Transparent acrylic |
| Vacuum Pump | Speed: 2L/S |
| Control System | Microprocessor, touch screen |
| Power supply (V/Hz) | 220V/50Hz,60Hz |
| Exterior dimension (WxDxH mm) | 582*541*374/684 |
| Penicillin bottle Φ22 | 260 | 195 |
| Penicillin bottle Φ16 | 480 | 360 |
| Penicillin bottle Φ12 | 920 | 690 |

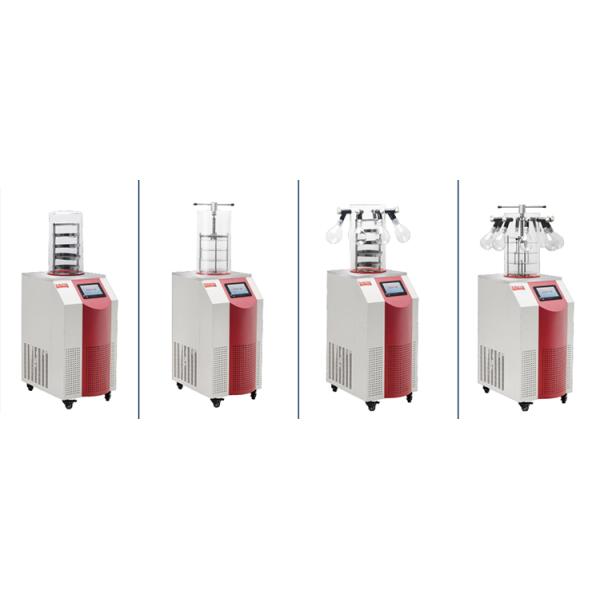

LTDG-10S LTDG-10T LTDG-10P LTDG-10PT
| Model | LTDG-12S | LTDG-12T | LTDG-12P | LTDG-12PT |
| Type | Standard
chamber | Stoppering
chamber | Standard
chamber with
8 port manifold | Standard
stoppering |
| | | | | chamber with
8 port manifold |
| Final condenser temp (℃) | -55 OR -80 |
| Vacuum Degree (Pa) | <10 |
| Condenser volume (L) | 9 |
| Freeze drying area (m2) | 0.12-0.18 | 0.09 | 0.12-0.18 | 0.09 |
| Ice condenser capacity (Kg/24h) | 4 |
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/shelf (ml) | 300 |
| Material loading capacity (ml) | 1200 | 900 | 1200 | 900 |
| Freeze drying time (h) | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y |
| Drying Chamber(standard) | Transparent acrylic |
| Vacuum Pump | Speed: 2L/S |
| Control System | Microprocessor, touch screen |
| Power supply (V/Hz) | 220V/50Hz,60Hz |
| Exterior dimension (WxDxH mm) | 582*541*374/684 |
| Penicillin bottle Φ22 | 260 | 195 |
| Penicillin bottle Φ16 | 480 | 360 |
| Penicillin bottle Φ12 | 920 | 690 |
LTDG-12S LTDG-12T LTDG-12P LTDG-12PT
| Model | LTDG-18S | LTDG-18T | LTDG-18P | LTDG-18PT |
| Type | Standard chamber | Stoppering chamber | Standard chamber with 8 port manifold | Standard stoppering |
| | | | | chamber with 8 port manifold |
| Final condenser temp (℃) | -55 OR -80 |
| Vacuum Degree (Pa) | <10 |
| Condenser volume (L) | 23 |
| Freeze drying area (m2) | 0.18-0.27 | 0.135 | 0.18-0.27 | 0.135 |
| Ice condenser capacity (Kg/24h) | 6 |
| Qty of shelf | 4 | 3 | 4 | 3 |
| Material loading capacity/shelf (ml) | 450 |
| Material loading capacity (ml) | 1800 | 1350 | 1800 | 1350 |
| Freeze drying time (h) | 24 |
| Manifold | / | / | 8 pieces | 8 pieces |
| USB Interface | Y |
| Drying Chamber(standard) | Transparent acrylic |
| Vacuum Pump | Speed: 2L/S |
| Control System | Microprocessor, touch screen |
| Power supply (V/Hz) | 220V/50Hz,60Hz |
| Exterior dimension (WxDxH mm) | 582*541*374/684 |
| Penicillin bottle Φ22 | 350 | 270 |
| Penicillin bottle Φ16 | 740 | 555 |
| Penicillin bottle Φ12 | 1320 | 990 |
LTDG-18S LTDG-18T LTDG-18P LTDG-18PT
If you have other models that need to be consulted, you can send an inquiry to us!
Product Highlights
Humanized Design
7" colorful touch panel, can display the product samples temperature, cold trap temperature and vacuum etc in digital and curve.
Touch panel with tilt design conforms to ergonomics and operate more comfortably.
Optional for gas interface: can inject inert gas
Optional for Cold trap electrical heating defrost function Optional for rack heating which is help to test in production Eutectic point testing, it can have sublimation temperature
